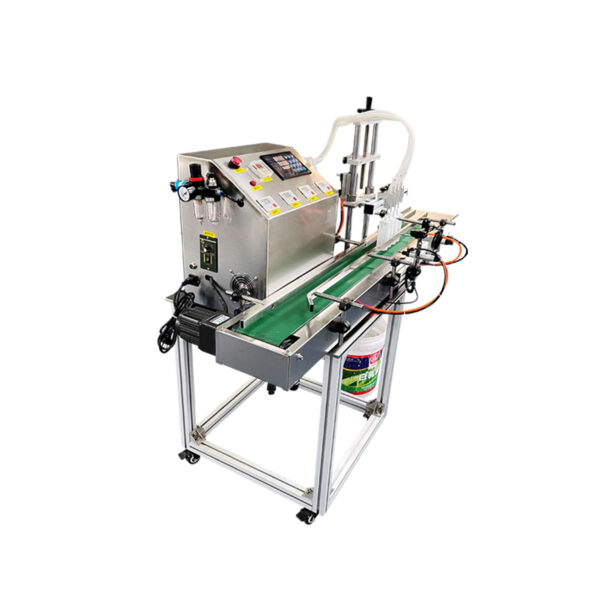

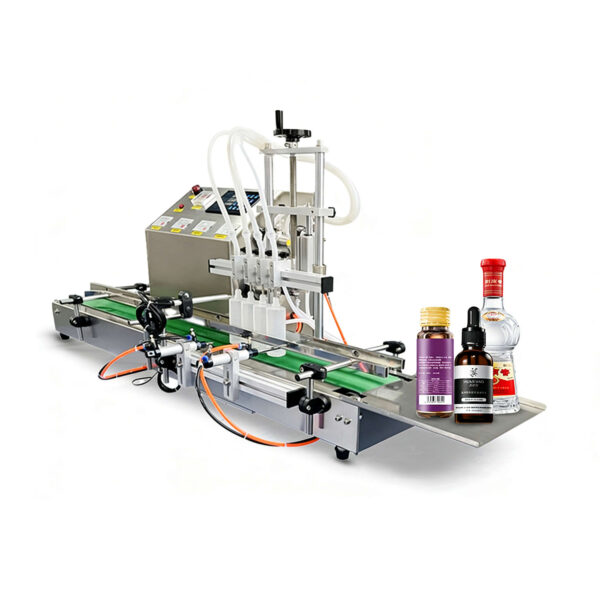

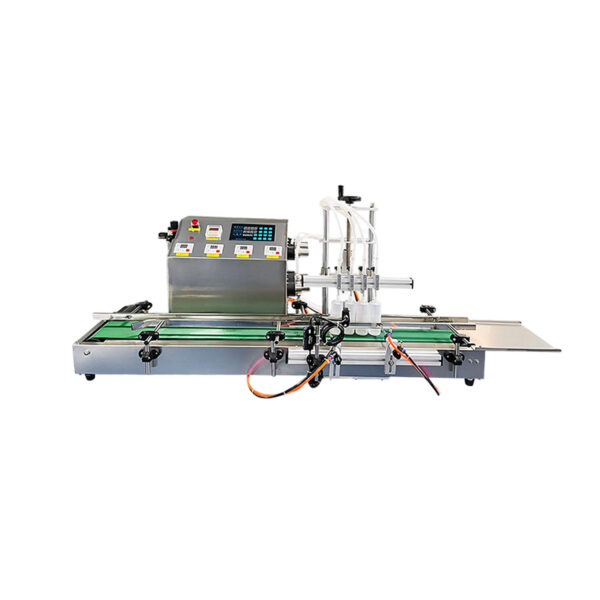

3.5L Table-top Four-head Magnetic Pump Filling Machine

Equipment Specifications Table

Parameter Information (Standard Model Technical Parameters)	Details	Parameter Information (Standard Model Technical Parameters)	Details
Product Name	Pure Electric Single-Head Automatic Liquid Filling Machine	Power	250W
Working Mode	Fully Automatic	Flow Rate	3.5L/head/min (5L/head/min customizable)
Machine Material	Stainless Steel	Working Power Supply	220V (110V customizable)

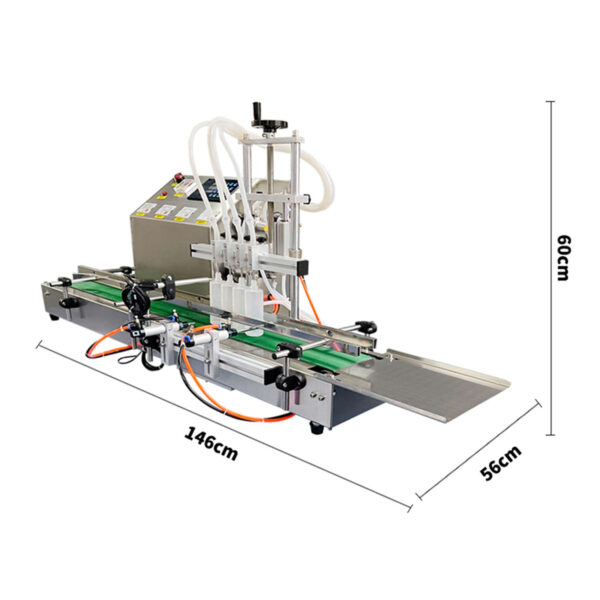

Machine Dimensions	1465136cm (customized based on actual needs)	Pump Head Type	Magnetic Pump
Motor Type	DC Motor	Filling Head Quantity	Single Head (multi-head customizable)
Controller	PLC Touch Screen	Error	±1% (based on water concentration)
Delay Range	0.01S~999.9S	Counting Range	1~59999 times
Machine Weight	Customized based on actual needs	Filling Head Diameter	6mm (1/2/3/4/5/8mm customizable)
Memory Function Available	Yes	Conveyor Belt Length	1.22m (1.5m/2.44m customizable)

Pump Head Material: 316 stainless steel (acid-alkali resistant, corrosion resistant)
Food-Grade Standard: Equipped with food-grade microcomputer numerical control for quantitative filling
Automatic Functions: Auto-induction filling, auto bottle feeding & changing
Lifting Filling Design: Reduces foaming, prevents splashing and overflow
